AVK FLANGED PIPE
PIPE W/WALL SLEEVE, PN 10/16
Sales Enquiries
Please email all sales enquiries to the address below

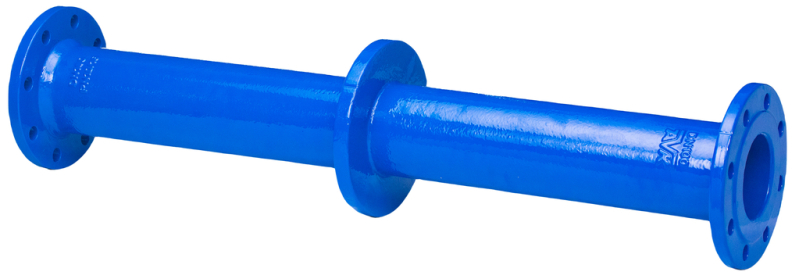

Flanged pipe with wall sleeve type FF-WP for water, waste water and neutral liquids to max. 70° C
AVK’s range of fittings comprises a wide selection of variants with socket, tyton and flange connection. The fittings are made of ductile iron min. GJS-400 (GGG-40) and are epoxy coated according to DIN 30677-2 and GSK specifications - internally and externally.
| Variant 712/6110-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| PN: | PN 10/16 |
Features
- Ductile iron fitting to EN 545.
- Body of min. GJS-400-15 (GGG-40).
- Epoxy coated to DIN 30677-2 and GSK guidelines internally and externally.
Downloads
Datasheet
Certificate(s)
Components
| 1. | Fitting | Ductile iron |
Standards
- Designed according to EN 545
- Standard flange drilling to EN1092, PN 10/16
