AVK Extension Spindle
to suit any AVK valve with 35mm sq male cap top. Ductile Iron

Sales Enquiries
Please email all sales enquiries to the address below
Extension Spindle for Gate Valves
Variant 04/30-004 | |
---|---|
Connection: | No connection type specified |
Material: | Ductile Iron |
Downloads
Datasheet
Price list

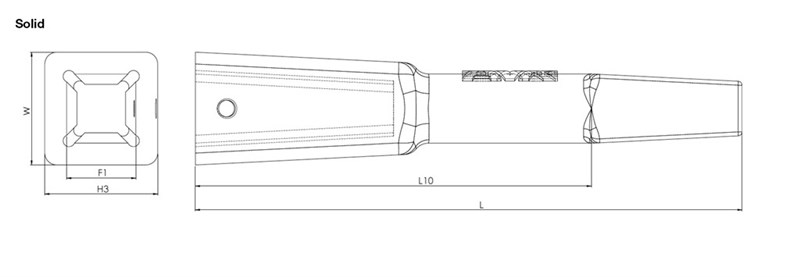

Reference nos. and dimensions:
Scroll for more info
Ref. no. | F1 mm |
H3 mm |
L mm |
L10 mm |
W mm |
---|---|---|---|---|---|
04-04830-4-010002 | |||||
04-04830-4-015002 | 35 | 57 | 226 | 150 | 57 |
04-04830-4-020002 | 35 | 57 | 276 | 200 | 57 |
04-04830-4-0225-02 | 35 | 57 | 301 | 225 | 57 |
04-04830-4-025002 | 35 | 57 | 326 | 250 | 57 |
04-04830-4-030002 | 35 | 57 | 376 | 300 | 57 |
04-04830-4-040002 | 35 | 57 | 476 | 400 | 57 |
04-04830-4-045002 | 35 | 57 | 526 | 450 | 57 |
04-04830-4-050002 | 35 | 57 | 576 | 500 | 57 |
04-04830-4-060002 | 35 | 57 | 676 | 600 | 57 |
